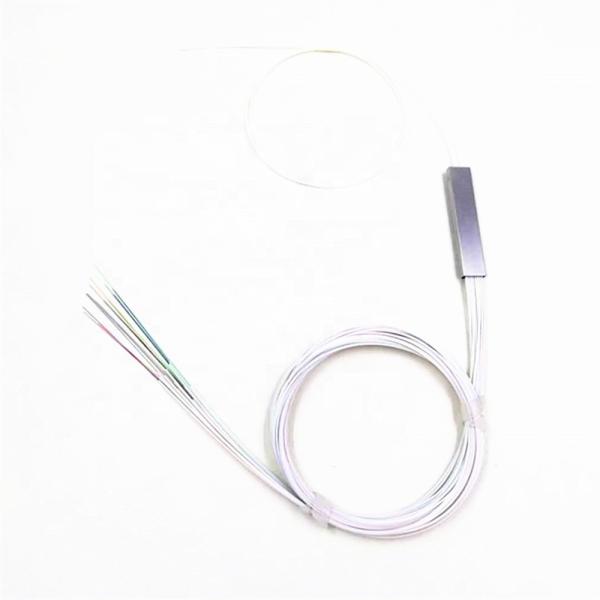

8 Color PLC Optical Splitter 1x16 Type With SC LC FC ST SC/APC
LC/APC Connector
Quick Details
Brand Name: CY
Model Number: 1*16 PLC
Mode: Singlemode
Insertion Loss≤0.5 dB
Max. Optical Power(mw):300
Return Loss(dB):UPC:50 APC:60
Operating Temperature(°C):-40~85
Connector Options:FC/SC/LC/ST/MU/E2000
Key Features
Compact package –Convenient for Small Application & High Density
Areas
Telcordia GR-1209 & GR-1221-CORE Compliant
Jacketing Material Rated to -40 to +85 °C Operating Temperature
Bend Insensitive G657A fiber
Low Insertion Loss and PDL
High Polarization Extinction Ratio & Excellent Uniformity
Offer Unique Designs and Configurations & Support Industry Standard
Applications
Applications
FTTx Deployments(GPON/BPON/EPON)
CCTV/CATV Links
Access/Metro Networks
Long Haul Telecommunications
1×N PLC Splitter Specifications
| Ports | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 |
| Insertion Loss (dB) | Max(P/S) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/21.0 |
| Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| PDL (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 |
| Return Loss (dB) | Min | UPC:50 APC:55 |
| Directivity (dB) | Min | 55 |
| Standard Input Fiber | Bend Insensitive SM Single Fiber(ITU G.657A) |
| Standard Output Fiber | Bend Insensitive SM Ribbon Fiber(ITU G.657A) |
| Standard Output Color | Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B) |
| Max. Optical Power(mw) | 300 |
| Humidity Range(rh) | 5%~85% |
| Operating Temperature(℃) | -40~+85 |
| Storage Temperature(℃) | -40~+85 |
| Connector Options | FC/SC/LC/ST/MU/E2000 |
| Packaging Options | Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount |
*Telcordia GR-1221-CORE&G-1209-CORE Compliant.
*Premium spec available upon request. (P/S: Premium Grade/Standard
Grade)
*Typical value at +23℃ without connectors losses. |
Competitive advantages
Hubei Chenyu Optoelectronics Technology Co., Ltd. strictly
implements the ISO9001 quality management system. The company has
good facilities and qualified human resources management personnel
to ensure stable product quality and excellent performance; and
good after-sales services have won the trust of customers ,
Products are exported to Europe, America and Southeast Asian
countries.
