    SC / UPC APC Connector Passive Optical Splitter 1x2 1x4 1x8 1x16 1x32 1x64 Type

    Ask Lasest Price
    Brand Name : OEM or CY
    Model Number : 1x2 PLC Splitter without connector
    Supply Ability : 50000 Piece/Pieces per Month
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    • Product Details
    • Company Profile

    SC / UPC APC Connector Passive Optical Splitter 1x2 1x4 1x8 1x16 1x32 1x64 Type

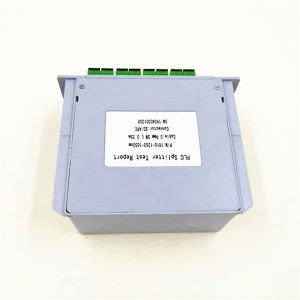

    Product display
    Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
    Specification:
    ParameterSpecification
    Operating Wavelength (nm)1260 ~ 1650
    Type

    1x2

    1x41x81x161x321x642x42x82x16
    Insertion Loss (dB) Max.≤4.2≤7.5≤10.6≤13.7≤17.2≤21≤7.8≤10.8≤13.9
    Uniformity (dB) Max≤0.6≤0.8≤1.0≤1.5≤2.0≤2.5≤1.0≤1.5≤2.0
    PDL(dB)Max<0.2<0.2<0.2<0.3<0.3<0.4<0.3<0.3<0.4
    Directivity (dB) Min55
    Return Loss (dB) Min55(50)
    Operating Temperature (°C)-45~ +85
    Storage Temperature (°C)-5~ +75
    Fiber length1m or custom length
    Fiber TypeCorning G656A1 or Fiberhome G657A1
    Connector TypeCustom specified

    Power Handling (mW)

    300
    Related Product

    SC / UPC APC Connector Passive Optical Splitter 1x2 1x4 1x8 1x16 1x32 1x64 Type

    SC / UPC APC Connector Passive Optical Splitter 1x2 1x4 1x8 1x16 1x32 1x64 Type

    FAQ

    Q1: How the warranty for products ?
    A: 10 years,and maintance for whole life

    Q2: Can we make OEM for products?
    A: Yes, we can print your logo or label on the products or on the box.

    Q3: Can you provide free samples ?
    A: Some of low value samples can be free for you, but you need pay for the shipping cost.

    Q4: How can you guarentee the quality ?
    A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

    Q5: What is your delivery time ?
    A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

    Q6: What's your payment terms ?
    A: We accept T/T, Western Union, Money Gram, Paypal.
    For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
